Description

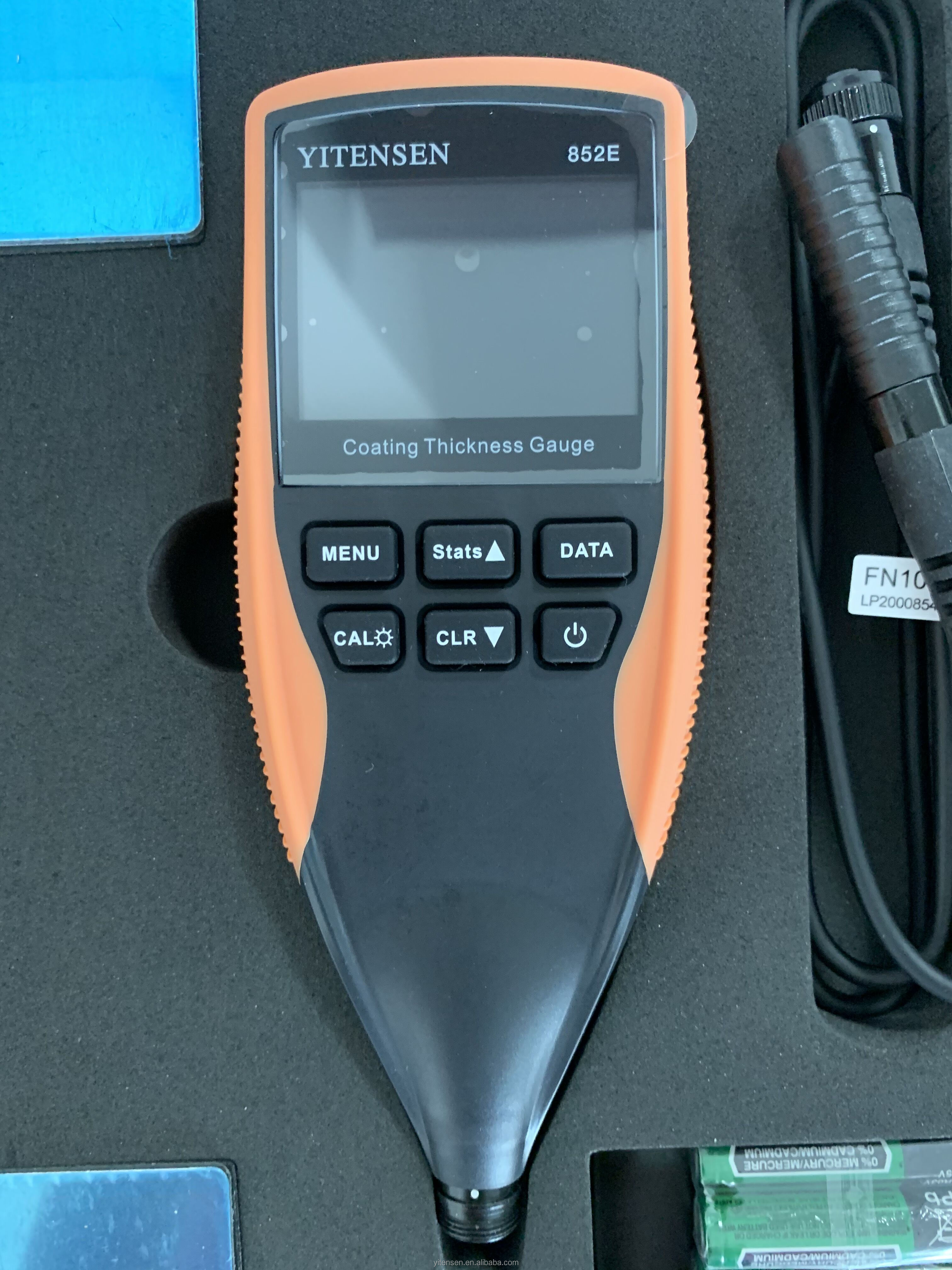

This handheld electronic thickness gauge is used to quickly and accurately measure thickness of coating or plating on metal surface. It not only indicates thickness of coating or plating but also automatically identifies which base material is used (Fe means magnetic metals such as iron & steel; NFe means non-magnetic metals, such as aluminum, alloy & non-magnetic stainless steel).

It is applicable to measure various coating or plating, including non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel, non-ferrous metal plating such as nickel & chromium, anticorrosive coating in chemical and petroleum industry, non-conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices, such as on aircraft or spacecraft, vehicle, home appliances, al-alloy door & window as well as other aluminum ware, and conductive coating or plating as long as the conductivity of coating or plating is at least 3 times less than that of base materials (such as copper with chromium plating).

Operating Temperature:
Range: 0~50℃ (+32~+120℉)
Remarks: it might take few seconds for the probe to reach environment temperature. Please disregard the values which are measured
at different temperatures.
Measuring Range: 0~1,250μm (0~50mils)
Resolution: 1μm / 0.1mils
Accuracy: +/-(3%+2μm) or +/-(3%+0.1mils)
Overall Dimensions: 100*52*29mm
Weight: 68g (excluding batteries)
